Batch printing of symbols

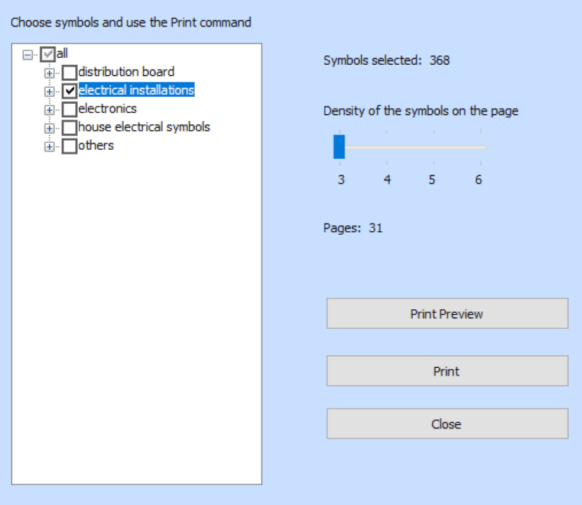

In the paid version it is possible to print the symbols from your library using the menu command Outputs - Batch Print Symbols. A dialog window appears where you can select the group(s) of symbols you want to print. You can also specify the density of the symbols, i.e. how many symbols should printed side by side.

print electrical symbols

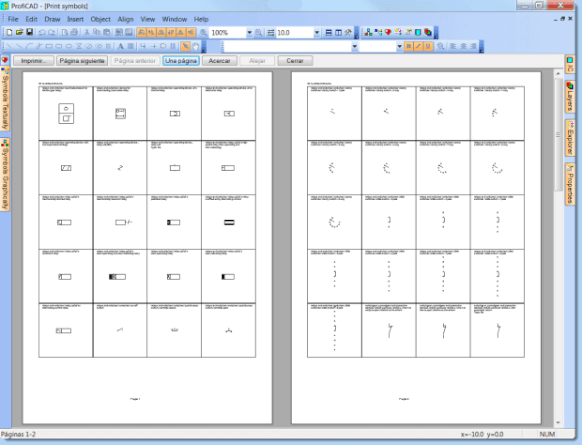

The program shows how many symbols have been selected and how many sheets of paper will be needed. Start printing (or print preview) using the usual icons on the toolbar or use the Ctrl + P shortcut.

print preview of the symbols
